微型公制轴承系列现已停产。

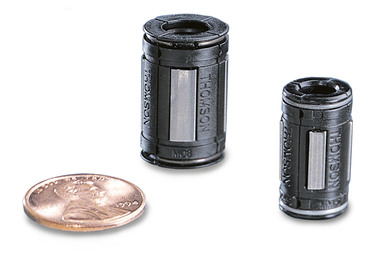

Thomson Miniature Metric Ball BushingTM 轴承?可在轻便、小巧的包装内?顺畅快速?运转，在使用寿命方面?是传统型线性轴承的 27 倍之多！轻型设计可实现精确移动和快速加速。双唇式一体化刷子有助于?安全润滑和防止灰尘进入，这可延长使用寿命。超精加工轴承板可确保运行顺畅和长久的 使用寿命。?提供可用于恶劣环境的耐腐蚀型选件。?
| 规格 | MM03 | MM05 | MM08 | MM12 |
|---|---|---|---|---|
| LinearRace 轴尺寸：mm | 3? | 5 | ?8 | 12 |
| 轴承类型： | 闭式 | 闭式 | 闭式 | 闭式 |
| 轴承滚道数量： | 4? | 4 | 4 | 5 |
| 动态负载额定值：N (lbf)* | 45 (10) | 170 (38) | 310 (70) | 650 (146) |
| 负载限值：N (lbf)** | 50 (11) | 190 (43) | 340 (76) | 715 (161) |
* 用于额定值为 100 km 的行进寿命。
** 负载限值为可向轴承/轴施加的最大负载。
注：务必分析应用，以确保最高或/与冲击负载不超过负载限值。
